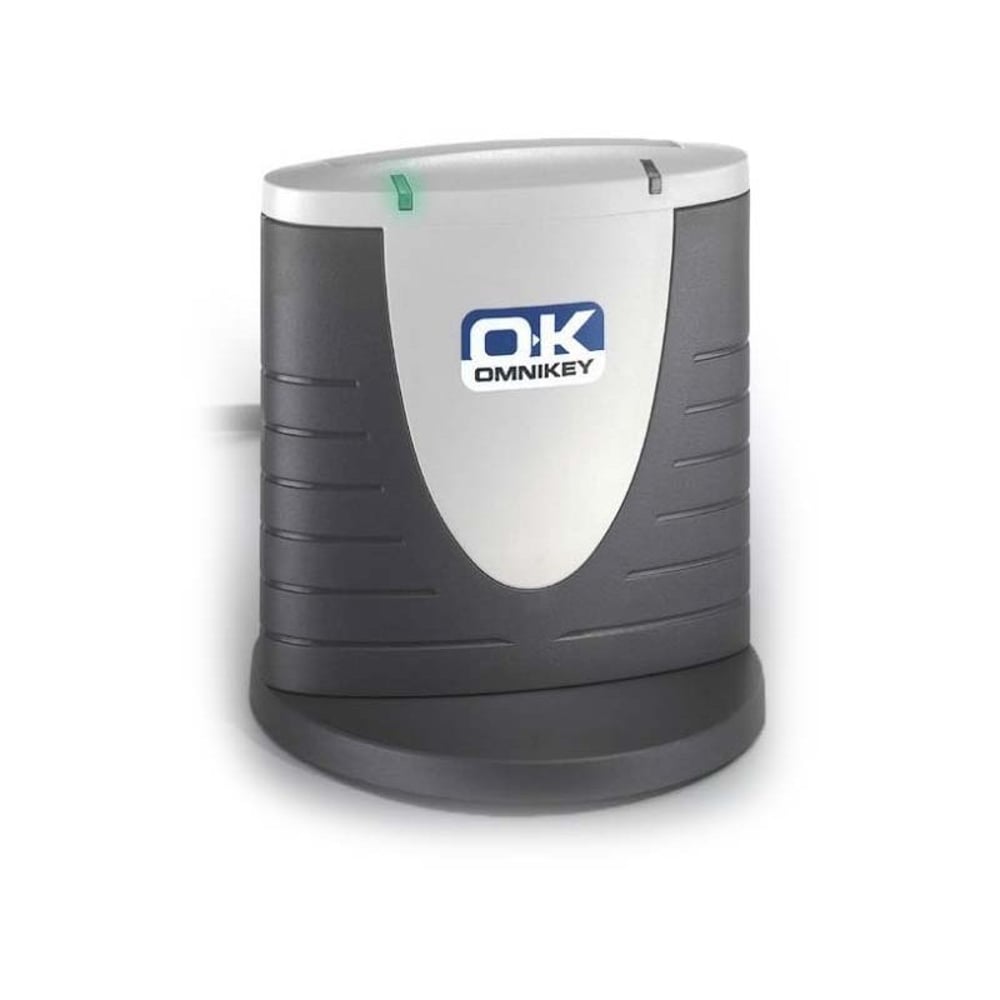

Model: Omnikey 3121

USB Smart Card Reader

The OMNIKEY® 3121 is a high-performance, USB smart card reader for desktop use that features multiple-base mounting options and a robust housing. Compliant with all industry standards, this reader is compatible with virtually any contact smart card, operating system and a variety of applications. The OMNIKEY 3121 is easy to install and wellsuited for all contact smart card operations, including single sign-on, online banking or digital signature applications.

Features

Easy to install

Eliminates the need to install drivers; uses native supported CCID drivers within the operating system.

Readily Compliant

Meets all relevant industry standards for smooth integration in PC environment

Convenient and Reliable

Multiple-base mounting options, robust housing, long USB cable

Suits Any Application

Compatible with virtually any smart card and major PC operating system

Specifications

• Base Model Number OMNIKEY® 3121

SMART CARD INTERFACE

• Card Size: ID-1 (Full size)
• Standards: ISO 7816
• Supported Card Types: Class A: 5V @ 60 mA; Class B: 3 V @ 60 mA; Class C: 1.8V @35 mA; ATR response time up to 1.6 s
• Protocols:
  • • Asynchronous: T=0; T=1
    • Synchronous: S=8 (I²C) ; S=9 (3-wire); S=10 (2-wire)
• Insertion Cycles: 100,000
• Smart Card Interface Speed: 420 kbps
• Smart Card Clock Frequency: up to 12 MHz
• Smart Card detection: Movement detection with auto power-off; Automatic detection of smart card type; Short circuit and thermal protection
• 8-Pin Handling: C4 / C8 supported

HOST INTERFACE

• USB Interface:
  • • USB 2.0 Full Speed Device (12 MBps)
    • USB 3.0 extended operability, tested with hubs/controllers
• Connector / Cable: USB Type A connector; 59.1" (150 cm) cable
• Operating Systems:
  • • Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2
    • Windows CE (5/6/7) depending on hardware
    • Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+
    • Mac OS X; AndroidTM
• Driver: CCID native driver from operating system
• Supported APIs: PC/SC - API

HUMAN INTERFACE

• Status indicator: Dual-color LED (green & red)

HOUSING

• Housing: Two-tone grey, ABS plastics
• Dimensions: 3.15" x 2.64" x 1.1" (80 x 67 x 28 mm)
• Weight: Reader only 3.88 oz (110g); Standard standing base 1.09 oz (31g)

OPERATING CONDITIONS

• Operating Temperature: 32-131 F (0-55°C)
• Operating Humidity: 10-90% rH
• Storage Temperature: -4 - 176 F (-20 - 80°C)
• Meantime Between Failure: (MTBF) 500.000 hours

COMPLIANCE AND REGULATORY

• Compliance / Certification:
  • • EMVCo Terminal Level 1
    • USB 2.0; TAA; GSA Fips 201 approved list
• Regional certifications: CE, FCC, UL, VCCI, KCC, MIC, RCM (C-Tick)
• Environmental: WEEE, RoHS, Reach

OPERATING CONDITIONS

• Warranty: Two-year manufacturer`s warranty
